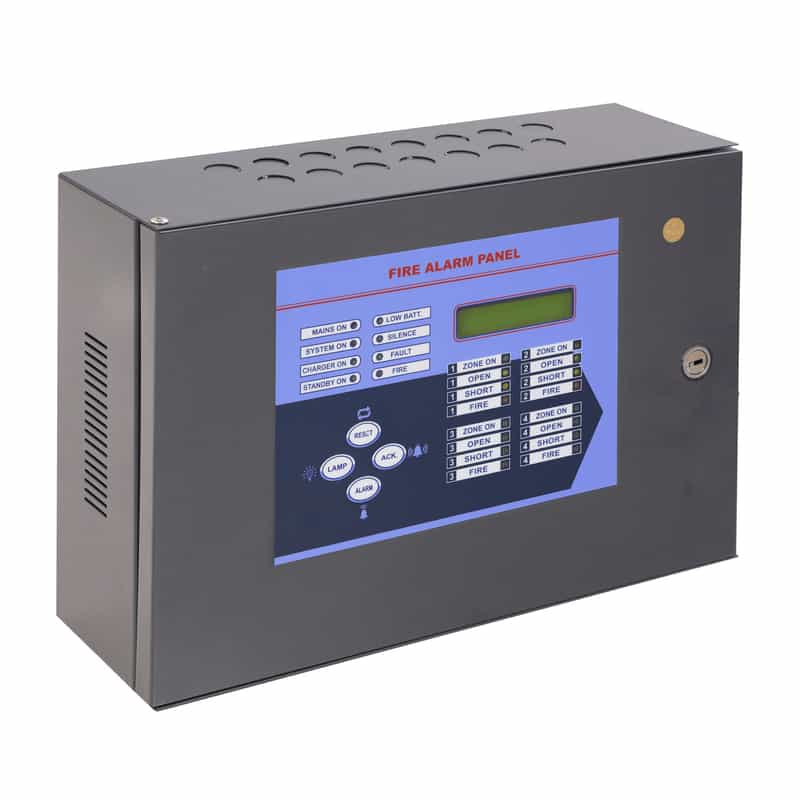

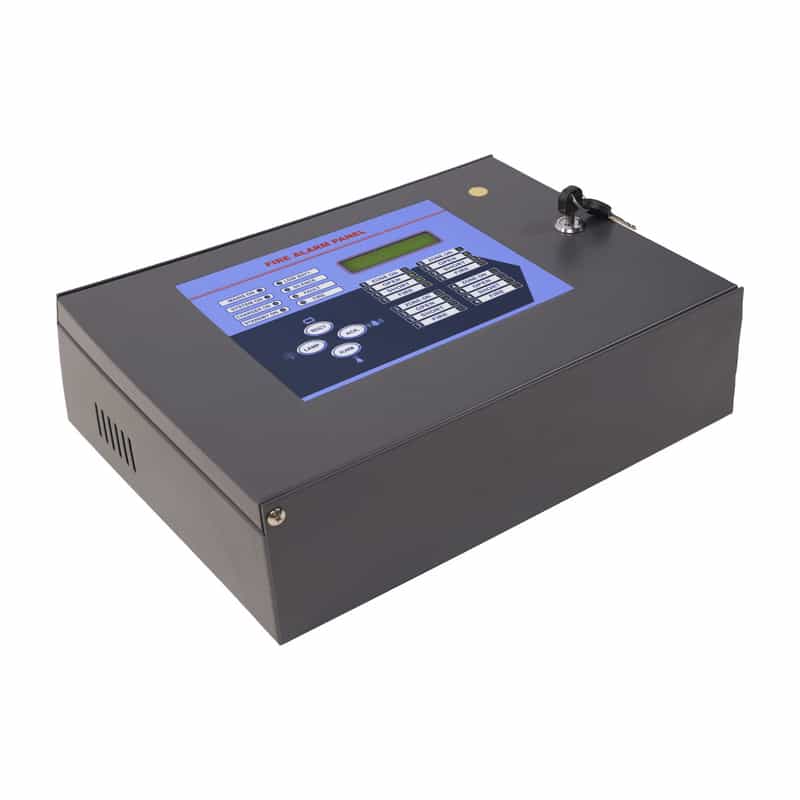

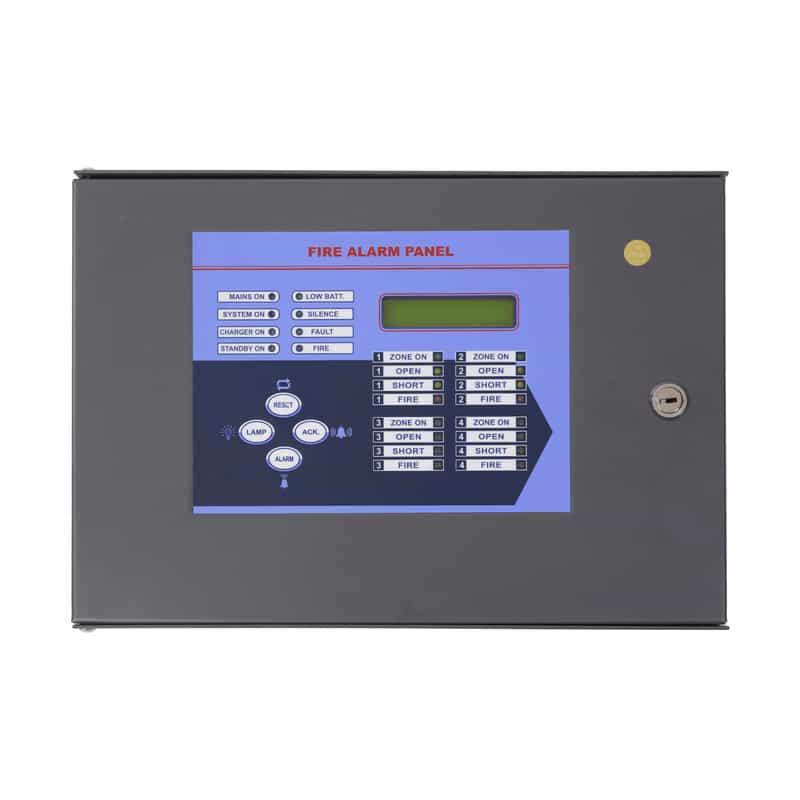

2 & 4 Zone Conventional Fire Alarm Panel
- Brand: Micro Sensors
- Product Code: MS-202-4
- Availability: In Stock
Conventional 2 & 4 Zone Fire Alarm Panel: Features
- Fully Confirm: lS-2189.
- Zone Wise Fire Fault LED indication.
- Zone Wise Isolation Facility
- Potential Free Contact Facility
- External s/w for reset, silence, lamp test.
- External s/w to test each zone fire, open, short status manually.
- Inbuilt Buzzer 16x2 line LCD Display.
- Inbuilt Battery charger & Battery space Operates on 230 V 50 Hz AC supply Potential free contract facility.
| Specification | |
|---|---|
| 1. Power I/P: | 230V AC/24 VDC |
| 2. Power consumption: | 25 Watt |
| 3. End of Line: | 4K7 |
| 4. No of zones: | 2, 4 |
| 5. Detection O/P supply: | 24V DC |
| 6. Hooter O/P supply: | 24V DC |
| 7. Cabinet Type: | MS |
| 8. Colour: | Black |
| 9. Paint: | Powder Coating |
| 10. Knock Out: | ZO mm |
| 11. Size: | 3l0mm x 95mm x 230mm |
| 12. Weight: | 4.2 kg (Without Battery) |
| 13. Operating temperature: | 0 Degree to 40 Degree C |
| 14. Operating Humidity: | 95% (Non-Condensing) |
